TLX White - Enclosure for Caribou MK3s and CaribouDuet 220/320. The TLX premium series of 3D printer enclosures represents a functional and aesthetic solution for your home or office. High rigidity of entire assembly is achieved by using a combination of 5 mm thick extruded acrylic sheets and 18 mm melamine faced panels.

The enclosure is designed and made in Czech Republic, using only high quality materials and components from renowned European manufactureres and suppliers. It is provided as self assembly kit with all parts, nuts and bolts, combinated HEPA/carbon filter and detailed assembly instructions included.

3D printer enclosures provide a temperature stabilized environment for better quality printing, reduce unpleasant printing smells, protect your printer from dust and, last but not least, improve safety of 3D printing. More

Manufacturer: TUKKARI

€ 252 incl. VAT
Manufacturing Time: 3 Weeks
pcs

Review

In July 2020, the German online magazine for 3D printing enthusiasts: 3DFans.DE appraised our Czech-made 3D printer enclosures of TLX series during testing. The full review, including a number of unboxing and assembling procedure photos, can be found at this link.

Tukkari TLX White -  3D Printer Enclosure for:

Caribou 220 i3 MK3s
Caribou 320 i3 MK3s
CaribouDuet 220
CaribouDuet 320

Why should you want to have an Enclosure for your 3D printer?

  • significant reduction in fumes and unpleasant smells
  • controlled ambient temperature improves reliability and consistency of your 3D printing
  • additional noise reduction
  • dust protection for your printer and improved 3D printing safety

Why buy from Us?

  • you are making your purchase direct from manufacturer, we are based in the Czech Republic
  • proven solution - TLX enclosures are used by private users as well as business clients of every size
  • rigid assembly made of 5mm extruded clear acrylic sheets and 18 mm melamine faced panels
  • we only use high-quality materials and components from renowned European manufacturers and suppliers

Main features:

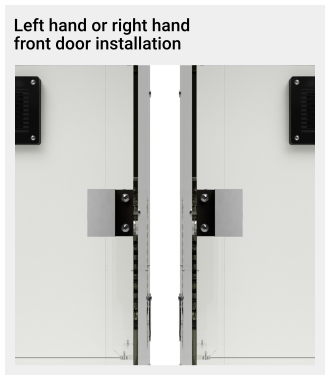

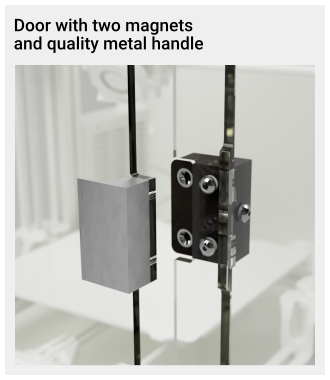

  • The front door with two magnets allows for both left hand or right hand installation.

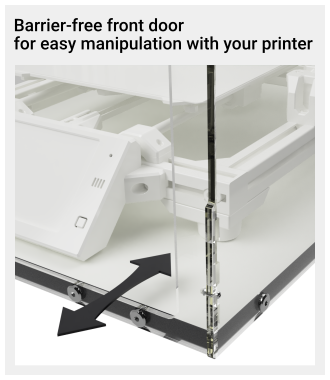

  • Wide barrier-free front door ensures that the 3D printer can be quickly and easily placed and removed without having to disassemble or modify it in any way.
  • You can enjoy completely unobstructed view of your 3D printing thanks to high quality clear acrylic sheets used.

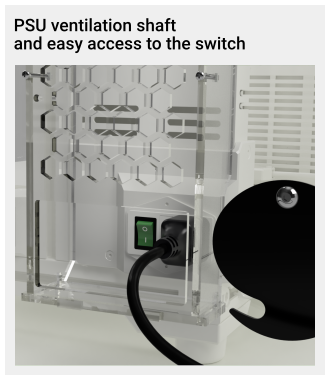

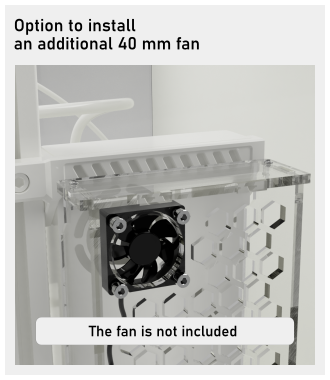

  • The printer PSU does not need to be placed outside the enclosure. TLX enclosures are fitted with a PSU ventilation shaft. You can also add a 40 mm fan for even greater support of cooling the power supply. (fan not included)

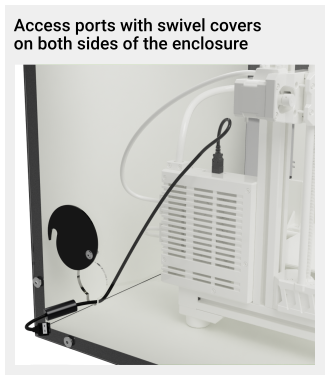

  • Cable inlets with swivel covers are placed on both left and right sides of the enclosure.
  • The enclosure is delivered as self assembly kit with all the parts, tools (except for the screwdriver and the 7mm / 8mm wrench) and illustrated step by step assembly instructions.

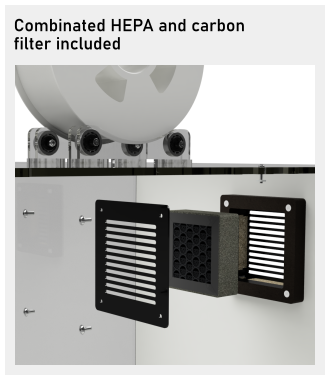

  • Combined HEPA + carbon filter is included in the package.

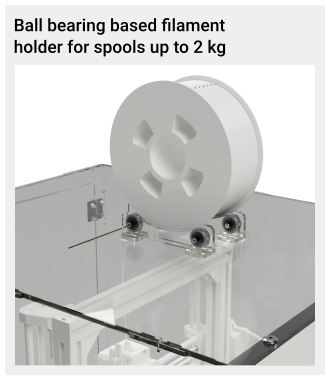

  • Your enclosure comes with free to move bearing based filament holder for spools up to 2 kg (see illustrations below)

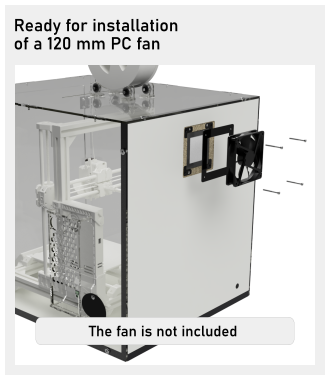

  • Additionally, you can mount any standard 120 mm PC fan or USB fan (not included) to support active airflow through provided carbon and HEPA filters. More information about optional fan installation and how to choose the fan for your enclosure, can be found in the section: Optional Installations.


Weight and dimensions:

External dimensions (without filament holder): (W x H x D): 54,5 × 60 × 66 cm
Internal dimensions: (W x H x D): 53,5 × 57 × 63 cm
Net weight: 16,9 kg
Gross weight: 19,9 kg


Included:

  • 5 mm thick clear extruded acrylic (XT) parts
  • 2 mm thick black extruded acrylic (XT) parts
  • 18 mm thick melamine faced panels
  • acrylic free to move filament holder for filament spools up to 2 kg
  • metal door handle
  • injection molded 5 mm high enclosure feet
  • all fasteners (bolts, nuts, injection molded hinges etc.)
  • activated carbon filter
  • Combined HEPA + carbon filter
  • complete set of assembly tools (except for the screwdriver and the 7mm / 8mm wrench)
  • illustrated, step by step assembly instructions

Not included:

  • optional 120 mm fan (you can use any standard 120 mm PC or USB fan, please see details, tips and recommendations in section: Optional installations)
  • optional 40 mm fa
  • 3D printer
  • 3D printing filament



    STATEMENT ON COLORS: Actual product colors may vary from colors shown on your monitor or display.

    How to install a fan on TLX enclosures

    How to install a fan on TLX enclosures

    TLX Enclosures are prepared for optional installation of a standard 120 mm fan. The fan installation is useful and unexpensive add-on if you want to increase active air flow through the provided carbon filter and HEPA filter. There are 4 pcs. of M4/40 mm socket head screws included to attach the fan at the back side of your enclosure.

    Not all users find neccessary to install the fan. It all depends on application. Therefore, the choice of fan remains with the user, fan is not part of the kit and can be easily added at any time later.

    You can mount any standard 120 mm 12V PC fan or 5V USB fan. In particular, 5V USB fans are easy to use, as these can be plugged into any USB port. Some have also on/off switch or fan speed regulator. You may purchase your fan from Amazon or Aliexpress. In these stores simply search for "5V USB 120 mm fan".

    To silence your fan, you may also consider adding a soft silicone "fan anti vibration gasket".

    Tip: the optional fan can be installed on both sides

    Do you prefer to install a fan inside the enclosure? The enclosure is also adapted for this variant. You will only need any 4 pieces of 30 mm long M4 screws to attach the fan.

    Rear side installation of the fan:

    Front installation of the fan:
